Pre-identify the dead cable you need to work on

Rererence: JUPITER_US

JUPITER is a multifunction equipment intended to aid work such as cable connections and replacement. Used on unpowered low or high voltage networks, it will pre-identify the cable to be worked on, and the phases in the cable quickly and very reliably. The Transmitter is self-powered and injects the signal needed for the different functions sequentially into the cable via the current clamps. Current clamps are closed around the unscreened cable end.
The receiver is a hand-held unit to which is connected up to five sensors for performing the various functions. The operation mode is selected automatically depending on the sensor detected.
All the results are displayed unambiguously on the hand-held, no operator interpretation is required!

Pre-identification of a live cable low tension

Rererence: NADIR_US

NADIR enables the identification of a live Low Voltage cable and the ID of each phase under load in a trench and at the substation exit.

Balance and optimize your low voltage distribution network

Rererence: TRIPHASOR_US

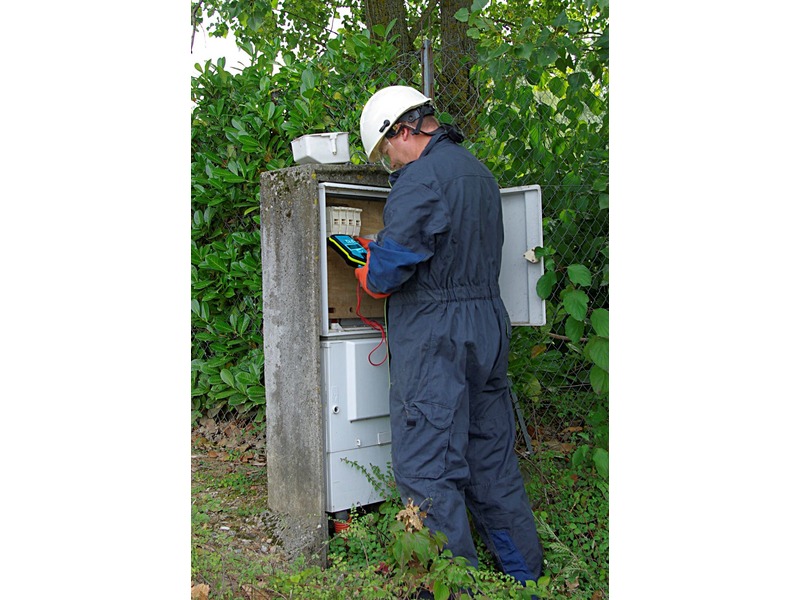

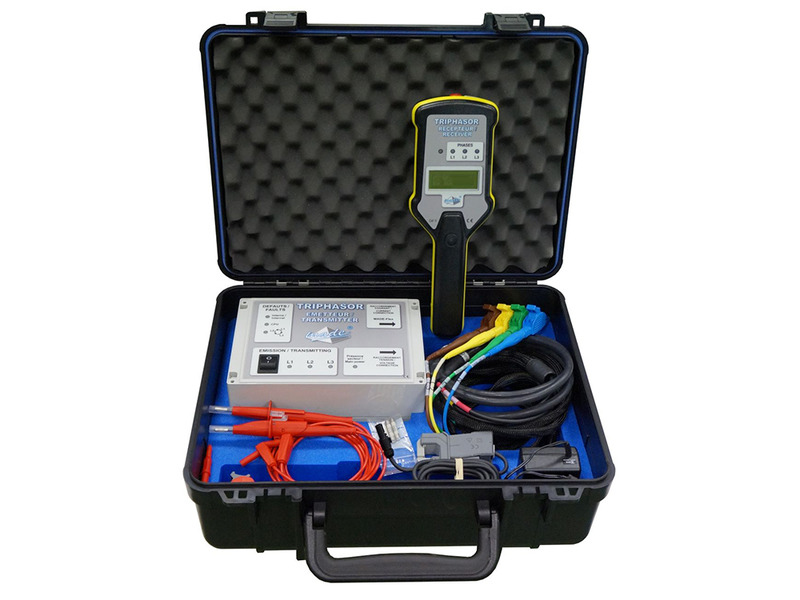

TRIPHASOR is an instrument for optimizing the operation of electrical distribution networks. It measures the electric grid characteristics in real time, and permits the identification of each phase on a tri-phase network.
TRIPHASOR is used on live low tension networks, under load.

Check the outer sheath of buried low or high voltage cables

Rererence: TESTECRAN_US

TESTECRAN+™ is used to check the outer sheath of an underground medium or low voltage cable, by measuring the insulation resistance between the screen and earth. If a faulty condition is found, corrective measures must be taken in order to assure ongoing good cable function. It is a handheld device supplied in a carrying case with its earth peg and connecting cables

All the measurements you need  : U, I, P and Cos Φ.

Rererence: _MULTIFLEX_US

LTI-Flex™ is a digital multimeter, equipped with a small flexible Rogowski coil current transducer (MADE-Flex™) for measuring the voltage and current, the combination of these two inputs enables the calculation of the instantaneous active power and Cos Phi on the electric network.
MULTI-Flex displays :
The RMS 1 second values of the alternative current (AC), the voltage, the power and the power factor.
There is automatic selection of two ranges for the current :
0 – 100 / 0 – 2000 A.
Voltage range : 0 - 480V~ AC
It is powered with a standard 9V battery PP3 Type. 6LR61.
